Valley Craft 78'' Semi-Powered Drum Lift & Rotator, Grip, Counterweighted F88587C1
Product Description
Valley Craft Drum Lift & Rotator - Semi-Powered, Powered Lift/Rotate, Manual Drive, Grip Connection, Counterweighted, 78"H, 800 lb. Capacity
Valley Craft’s 78” Semi-Powered Drum Lifts and Rotators simplifies the lifting and rotating of drums by utilizing power. Drums electronically clamp and lift up to 71” in height in less than 30 seconds, and can hydraulically rotate up to 360° continuously in either direction. Compatible with all drum styles (steel, plastic and fiber), units offer convenient push/pull transporting as needed.
The Grip configuration (Roto-Grip) combines jaws with an electronic actuator to grab drums (18-28”), requiring no manual assistance. With an 800 lb. capacity it is simple to maneuver unit on (4) casters (2) 6” front rigid, and (2) 4” rear swivel). Power source is a 12V DC battery (included) that plugs into any standard outlet using an extension cord (not included). Designed as a standalone lift and rotator, forklift assistance is not required.
Counterweighted models improve handling with the ability to butt directly up to pallets, shelving, or other units without having to worry about extended straddle legs getting in the way. Note that counter-weighted units are heavier and require more force to maneuver. Optional floor locks are available (sold separately).
Valley Craft’s Semi-Powered Drum Lifts and Rotators improve the safety and productivity of any facility that is lifting, rotating, and transporting drums. Constructed of heavy gauge steel with a premium powder coat paint finish in green, you can be confident these units are built to last. All products are shipped fully assembled, ready-to-use, and are made in the U.S.A.
Features
- Safely and ergonomically lift, rotate, and maneuver drums throughout your facility.
- Standalone unit (no forklift required).
- 24V battery powered lift and rotate, manual drive.
- Raise middle of drum to a maximum height of 71” off the floor.
- Minimum center grip height of 13” off the floor.
- Rotate 360° continuously in either direction, at 6 RPM
- Counterweighted unit butts directly up to pallets, shelving, or other items.
- Electronic jaws for securing drums.
- Compatible with steel/plastic/fiber drums, 30-55 gallons (18-24” in diameter).
- Manuevers easily on 4 casters: (2) 6″ front rigid, (2) 4″ rear swivel.
- 62″L x 30″W x 78″H.
- 800 lb. capacity.
- Heavy gauge steel construction.
- Premium powder coat paint finish in green.
- Accessory options include: floor lock (sold separately).
- Ships fully assembled, ready to use.
- Made in the U.S.A.
Specifications

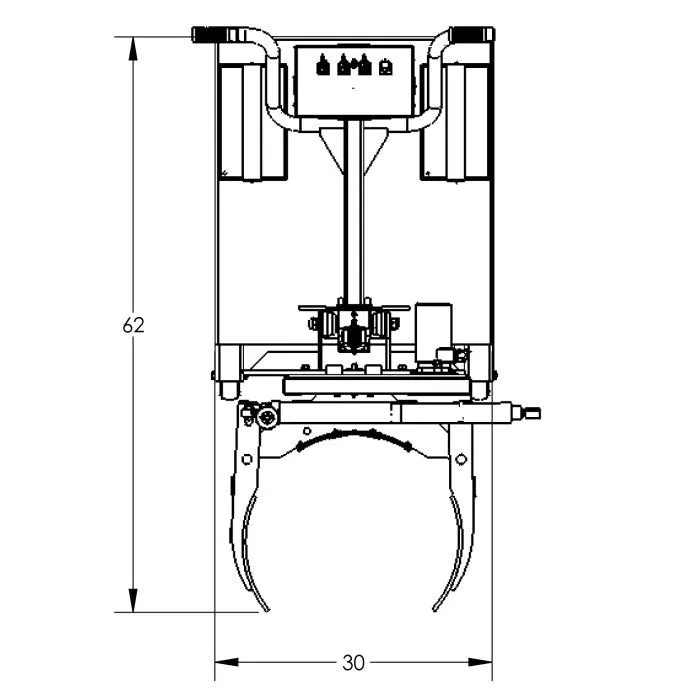

| Overall Dimensions L x W x H (in): | 62 x 30 x 78 |
| Product Weight (lb): | 1,150 |
| Load Capacity (lb): | 800 |
| Color: | Green |
| Drum Type: | Steel, Plastic, Fiber |
| Drum Diameter (in): | 18 – 24 |
| Drum Capacity (gal): | 30/55 |
| Function – Lift: | Battery Powered Hydraulic Motor |
| Function – Grip: | Jaws Actuated with Electric Cylinder |
| Function – Rotate: | Battery Powered Hydraulic Motor |

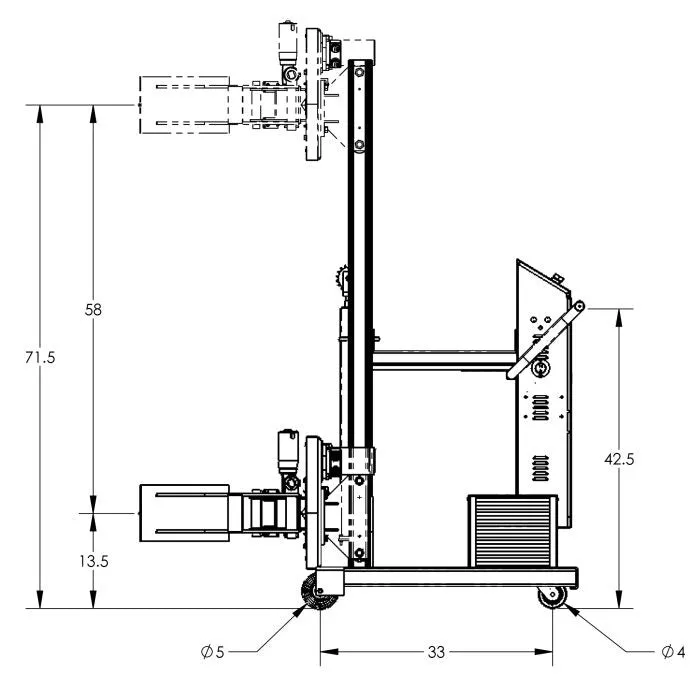

| Lift Height (in): | 71 |
| Lift Distance (in): | 58 |
| Lift Speed (in/sec): | 3.4 |
| Turn Radius: | 39 |
| Rotate Speed: | 6 RPM |
| Jaw Size W x H (in): | 13 x 8 |
| Base Style: | Counterweighted |
| Power Source: | 12V Battery Powered, Rechargable |
| Caster Configuration: | (2) 6″ Front Rigid & (2) 4″ Rear Swivel |
