Valley Craft 78″ Fully Powered Drum Lift & Rotator, Grip, Counterweighted F80146A9
Product Description
Valley Craft Drum Lift & Rotator - Fully Powered Lift/Rotate/Drive, Grip Connection, Counterweighted, 78"H, 1000 lb. Capacity

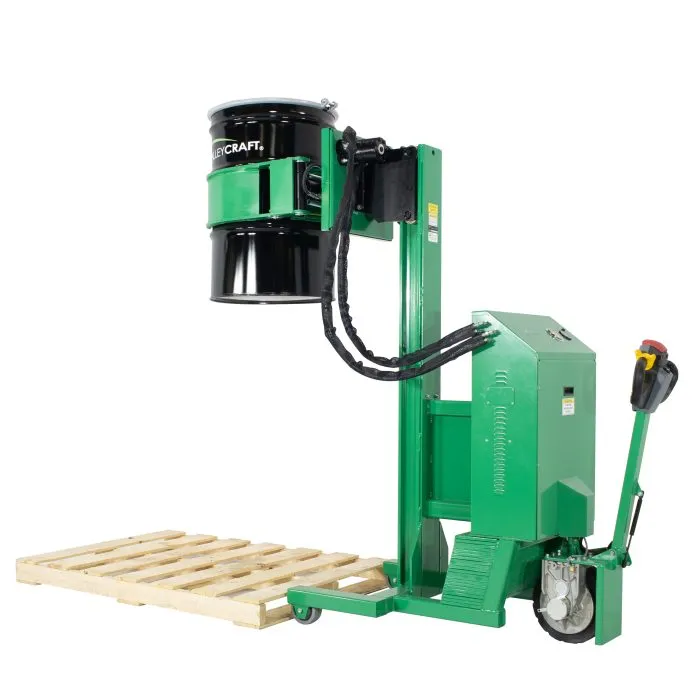

Valley Craft’s 78” Fully Powered Drum Lifts and Rotators simplify the lifting, rotating and transporting of drums by utilizing power. Drums lift up to 71” in height in less than 30 seconds, rotate up to 360° continuously in either direction at 6 RPM, and drive up to 2.5 MPH. Compatible with all drum styles (steel, plastic and fiber), drum handling and maneuvering has never been easier.

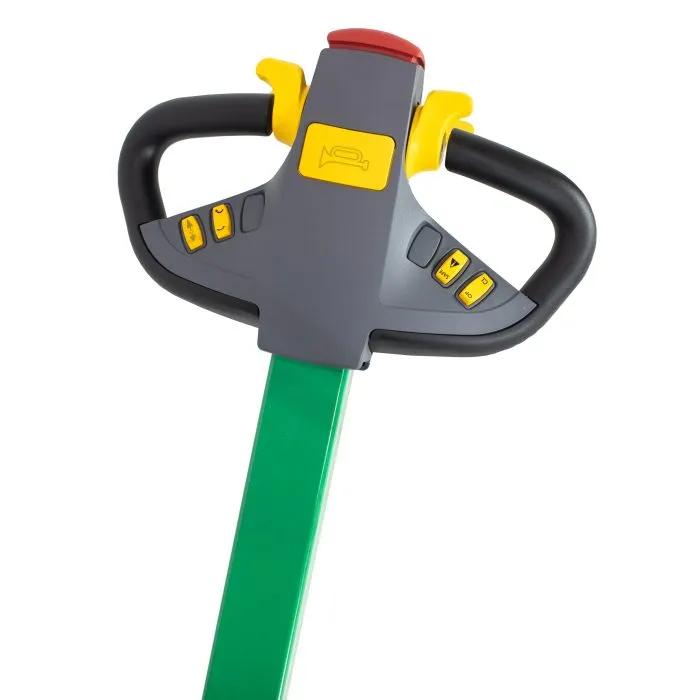

Power source is a 24V system featuring (2) 12V DC batteries and an AC charger (included) that plugs into any standard outlet using an extension cord (not included). This premium system includes an adjustable drive system of 1-2.5 MPH (default set to 2.5 MPH) and an ergonomic Curtis TM-1 Tiller head for simple handling. Tiller handle features keyed on/off, reverse, adjustable throttle, rocker switches, horn and a battery indicator light.

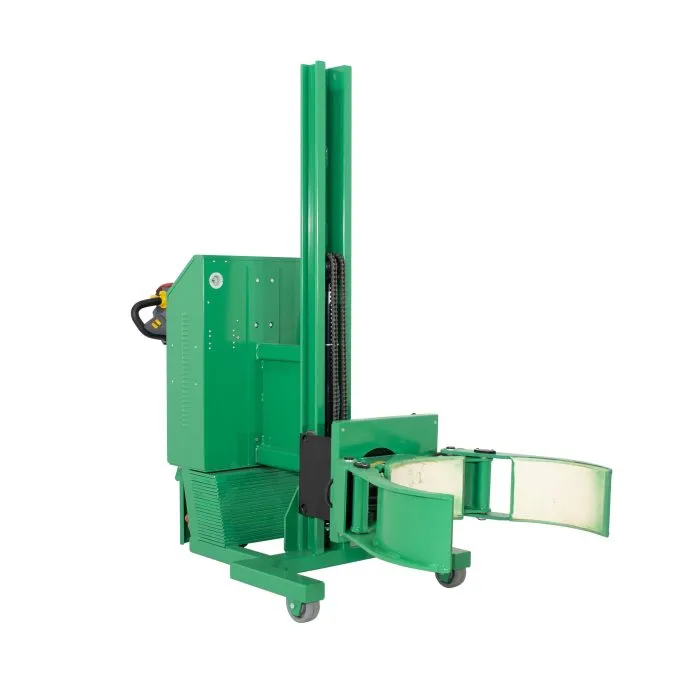

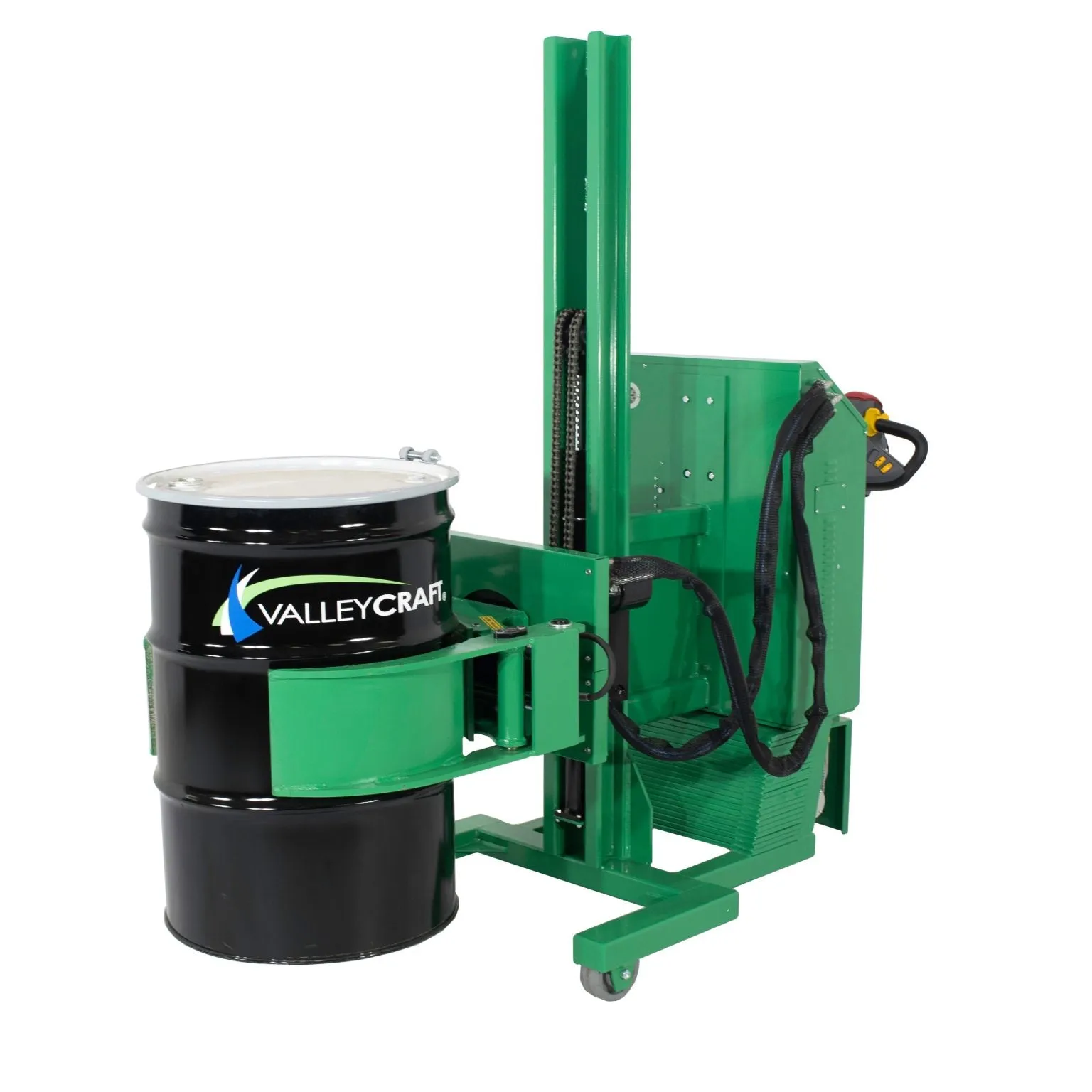

The Grip configuration (Roto-Grip) combines jaws with a hydraulic actuator to grab drums (18-28”), requiring no manual assistance. This hydraulic actuator has an adjustable pressure gauge to help ensure the appropriate amount of pressure is applied to secure your unit without damaging it. With a 1,000 lb. capacity it is simple to maneuver units on (2) 6” front rigid casters and (1) 12” rear power drive wheel. Designed as a standalone lift and rotator, forklift assistance is not required.

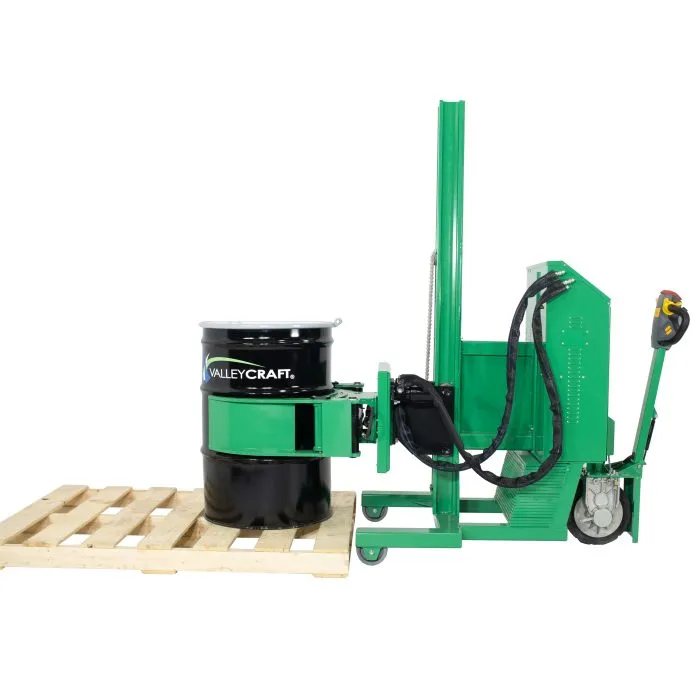

Counter-weighted models improve handling with the ability to butt directly up to pallets, shelving, or other units without having to worry about extended straddle legs getting in the way.
Valley Craft’s Fully Powered Drum Lifts and Rotators improve the safety and productivity of any facility that is lifting, rotating, and transporting drums by eliminating the need for heavy manual assistance. Constructed of heavy gauge steel with a premium powder coat paint finish in green, you can be confident these units are built to last. All products are shipped fully assembled, ready-to-use, and are made in the U.S.A.
Features
- Safely and ergonomically lift, rotate, and maneuver drums throughout your facility.
- Standalone unit (no forklift required).
- 24V battery powered drive, lift, and rotate.
- Raise middle of drum to a maximum height of 71” off the floor.
- Minimum center grip height of 13” off the floor.
- Rotate 360° continuously in either direction, at 6 RPM
- Counterweighted unit butts directly up to pallets, shelving, or other items.
- Electronic jaws for securing drums.
- Compatible with steel/plastic/fiber drums, 30-85 gallons (18-28” in diameter).
- Drive up to 2.5 MPH on (2) 5″ front swivel casters and (1) 12″ powered rear wheel.

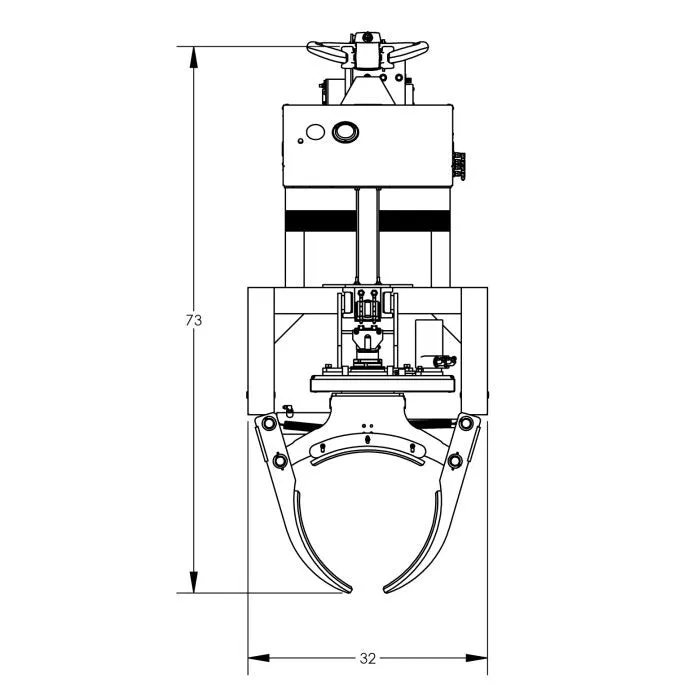

- 73″L x 32″W x 78″H.
- 1,000 lb. capacity.
- Heavy gauge steel construction.
- Premium powder coat paint finish in green.
- Ships fully assembled, ready to use.
- Made in the U.S.A.
Specifications

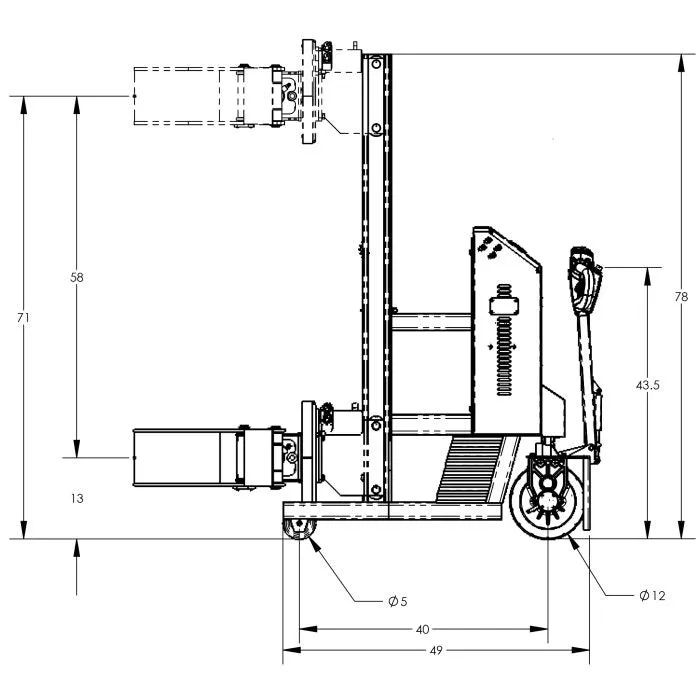

| Overall Dimensions L x W x H (in): | 73 x 32 x 78 |
| Product Weight (lb): | 1,560 |
| Load Capacity (lb): | 1,000 |
| Color: | Green |
| Drum Type: | Steel, Plastic, Fiber |
| Drum Diameter (in): | 18 – 28 |
| Drum Capacity (gal): | 30/55/85 |
| Function – Lift: | Battery Powered Hydraulic Motor |
| Function – Grip: | Hydraulic Cylinder with Jaws |
| Function – Rotate: | Hydraulic Rotate 360° |
| Lift Height (in): | 84 |
| Lift Distance (in): | 71 |
| Lift Speed (in/sec): | 3.4 |
| Turn Radius: | 41 |
| Drive Speed (mph): | 1 – 2.5 |
| Rotate Speed: | 6 RPM |
| Jaw Size W x H (in): | 15 x 9 |
| Base Style: | Counterweighted |
| Power Source: | 24V Battery Powered, Rechargable |
| Caster Configuration: | (2) 5″ Front Rigid & (1) 12″ Rear Powered Wheel |
