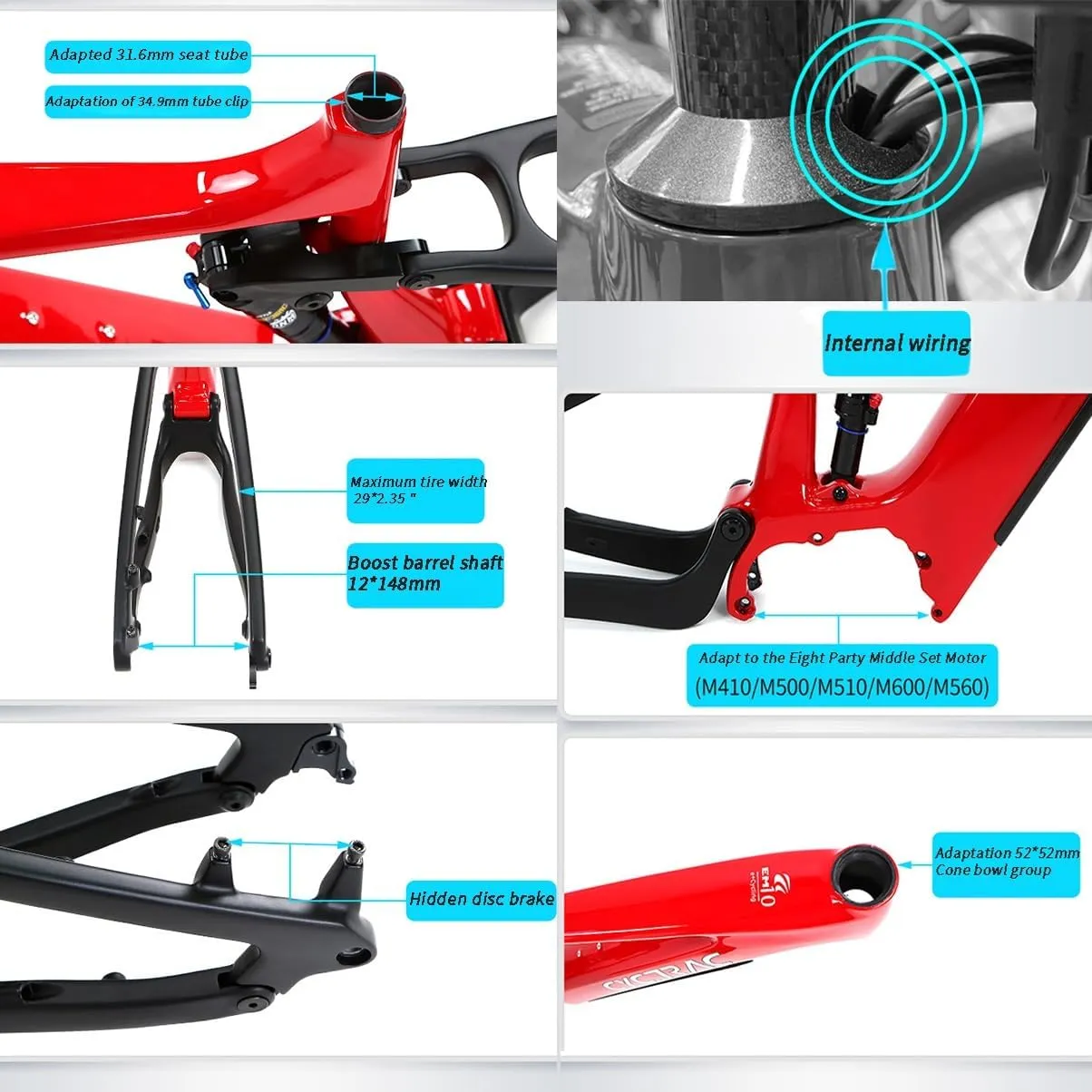

- Specifications: Suitable for 52*52 tapered headset, seat tube 31.6mm, tube clamp 34.9mm.

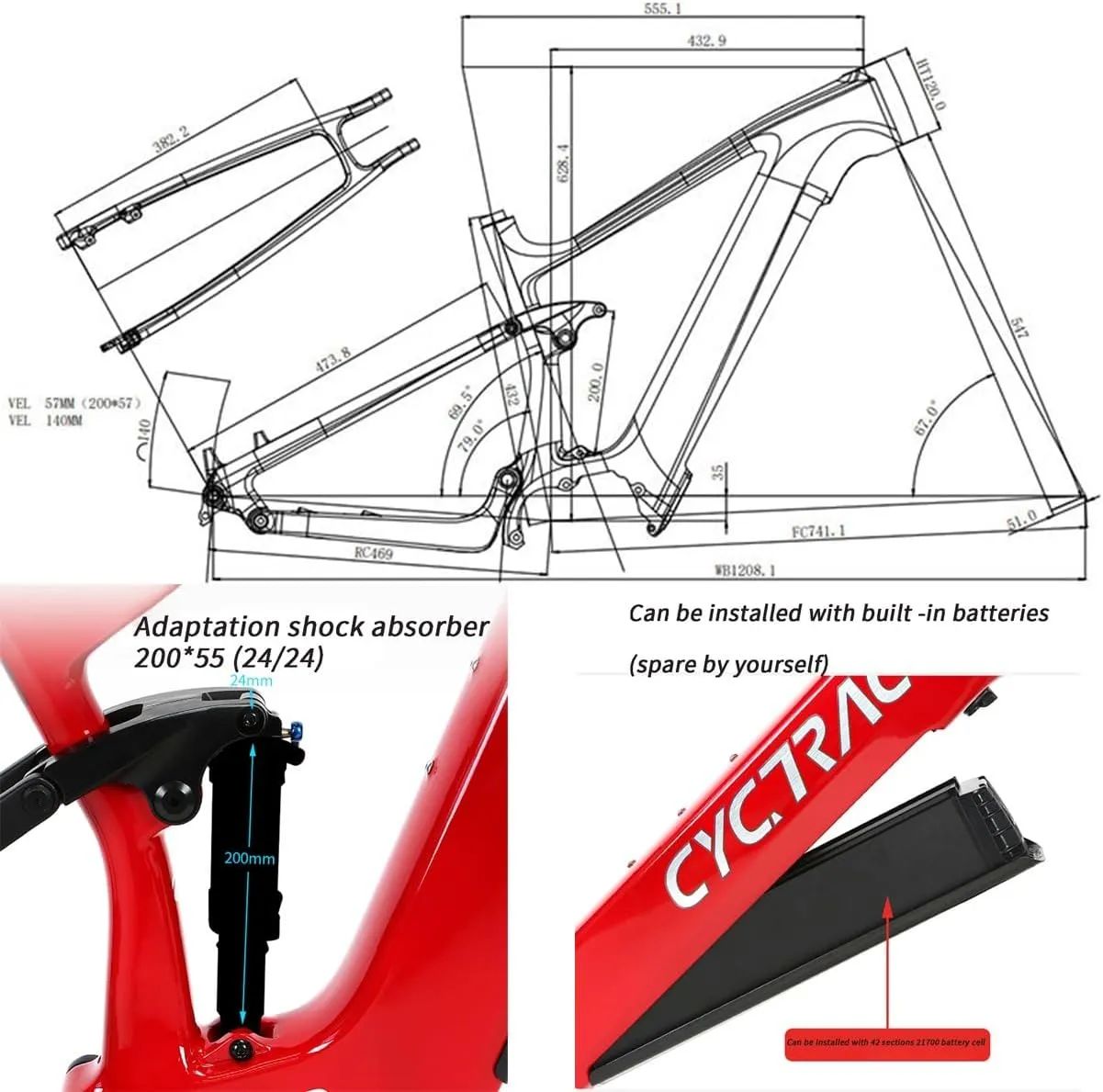

- Electric vehicle frame: suspension frame 27.5/29er, disc brake soft tail mountain bike frame, travel 140mm, maximum tire 29*2.35" (27.5*2.6").
- Open gear: Boost thru-axle 12*148mm power-assisted frame, adapted to shock absorber 200*55 (24/24).

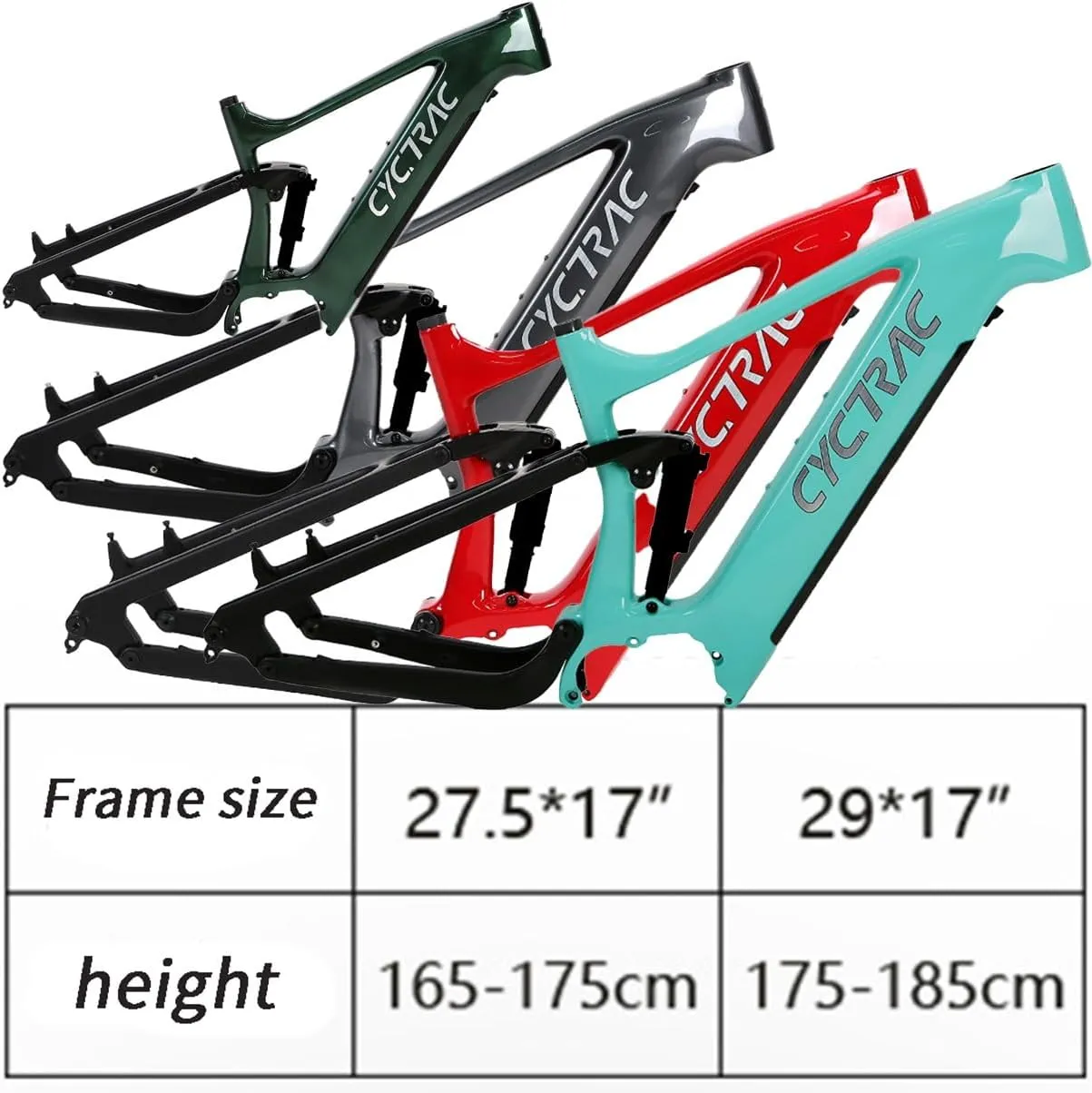

- Size: 27.5*17" recommended rider height 165-175cm, 29*17" recommended rider height 175-185cm.
- Shock-absorbing frame: Effectively absorbs rough terrain and impact forces to ensure a good riding experience and is suitable for rough terrain.

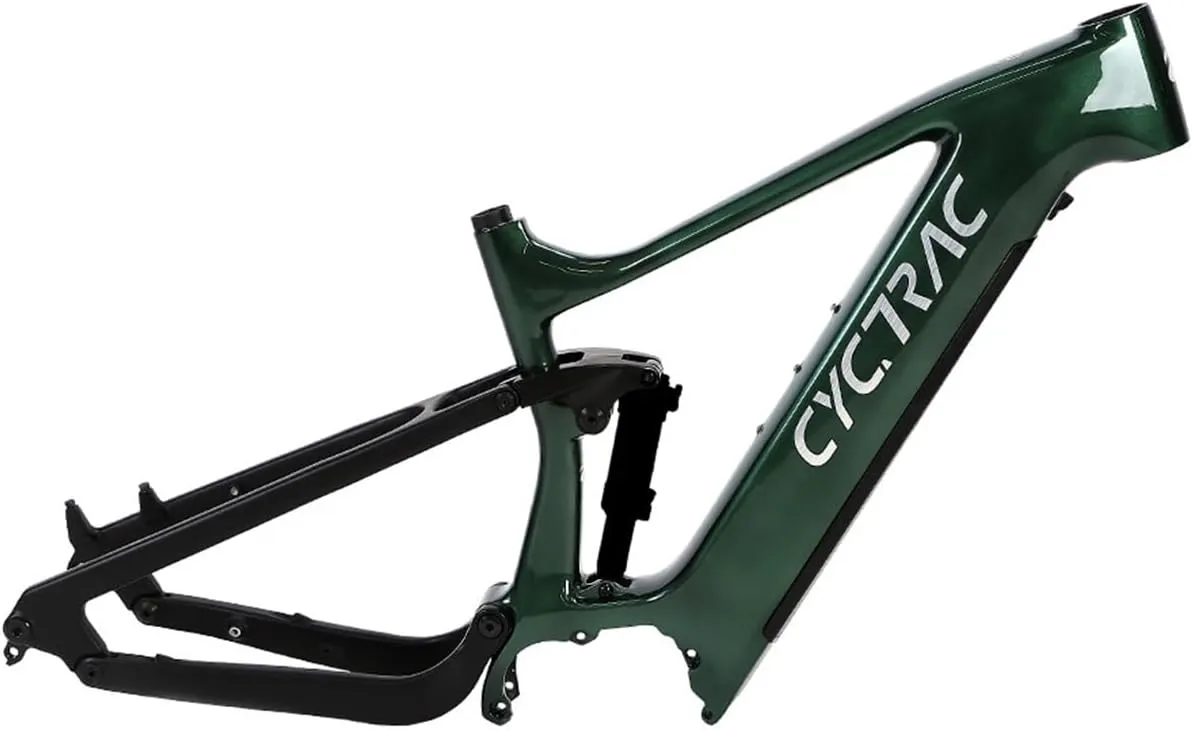

Electric soft tail frame 27.5/29er carbon fiber electric bicycle frame 17 inches 140mm inner stroke routing
Product name: Electrically assisted soft tail carbon fiber mountain bike frame
Size: 29(27.5)*17 inches
Color: blue and black, red and black, gray and black, green and black
Material: high modulus carbon fiber
Specifications: Suitable for 52*52 conical bowl set
Seat tube: 31.6mm
Pipe clamp: 34.9mm
Open gear: Boost thru-axle 12*148mm
Shock absorber: Suitable shock absorber 200*55 (24/24)
Frame travel: 140mm
Maximum tire width: 29*2.35"(27.5*2.6")
Tip: Suitable for Bafang mid-mounted motor (M410/M500/M510/M600/M560) A cover
Weight: Frame is about 3.7KG (excluding battery box set)
Package:
1*Electric soft tail mountain bike frame
1*barrel shaft
1*bowl set
1*Battery box complete set (batteries not included)
Notes:
1. Due to manual measurement, there will be an error of 1-2cm. There will be color difference due to different shooting angles.
2. Please double check the size details in the listing to choose the right frame for your bike.
