- 🛹【Speed and Passion】The maximum speed of 9.32mph, maximum climb angle of 20°, and range of up to 14.3 miles allow you to enjoy the speed and passion that skateboarding brings! Moreover, the large torque(max. 4.5N.m) brings greater comfort and flexibility during turning.
- 🛹【Powerful Motor】The 250-watt brushless motor with 2200rpm speed runs at a low noise of about 55db and ensures high efficiency( over 80%), allowing you to have a good skating experience.
- 🛹【High Load Capacity & Safety】Thanks to electric skateboard motor set's high-quality materials and four-wheeled structure, the maximum load capacity reaches 220.46 lbs, allowing you to skateboard happily! The IP44 waterproof rating and Class E insulation allow it to be used in rainy weather.
- 🛹【Simple Installation】All the parts of the drive scooter hub motors are already assembled, you just need to plug the connecting cable into the skateboard jack and use it!
- 🛹【Easy to Clean】Thanks to the electric skateboard conversion kit's simple structure and smooth surface, when dust accumulates on the surface, you only need to wipe it clean with a towel.
✪Application
This speed skateboarding equipment is suitable for the skateboard industry, skateboarders, etc. and it can be mounted on long or short skateboards within 35.43 inches.
✪Specifications
Color: Orange/Black/Red
Material: PU
Power Source: Battery Powered
Assembly Required: Yes
Mount Type: Skateborad-mounted
Number of Pieces: 2
Rated Voltage: 36VDC
Rated Current: 9A
Rated Power: 250W
Rated Torque:> 1.5N.m
Efficiency: ≥80%
Maximum Torque: 4.5N.m
Number of Motor Poles: 10 Pairs of Poles
Ambient Condition: 20±10°C/68±50°F, 65%±5%
Operating Environment: -10C°-35C°/-50-95°F
No-load Current: ≤1.2A
No-load Speed: 2200RPM ± 5%
Waterproof Grade: IP44
Insulation Class: E
Motor Hall: SF41/Optional
No-load Noise: 55db
Brake: Electronic Brake/Electromagnetic Brake
Maximum Load Capacity: 100 kg/220.46lbs
Maximum Speed: 15km/h, 9.32mph
Speed Range: 8/15km/h, 4.97/9.32mph
Motor: Brushless Motor
Battery: 36V, 4.4Ah/6.6Ah/7.8AH(Not Inclueded)
Charging Time: 2~4 hours
Charging Voltage: AC 110 - 240V, 50 - 60Hz
Maximum Climbing Angle: 20°
Gross Weight: 3kg/6.61lbs

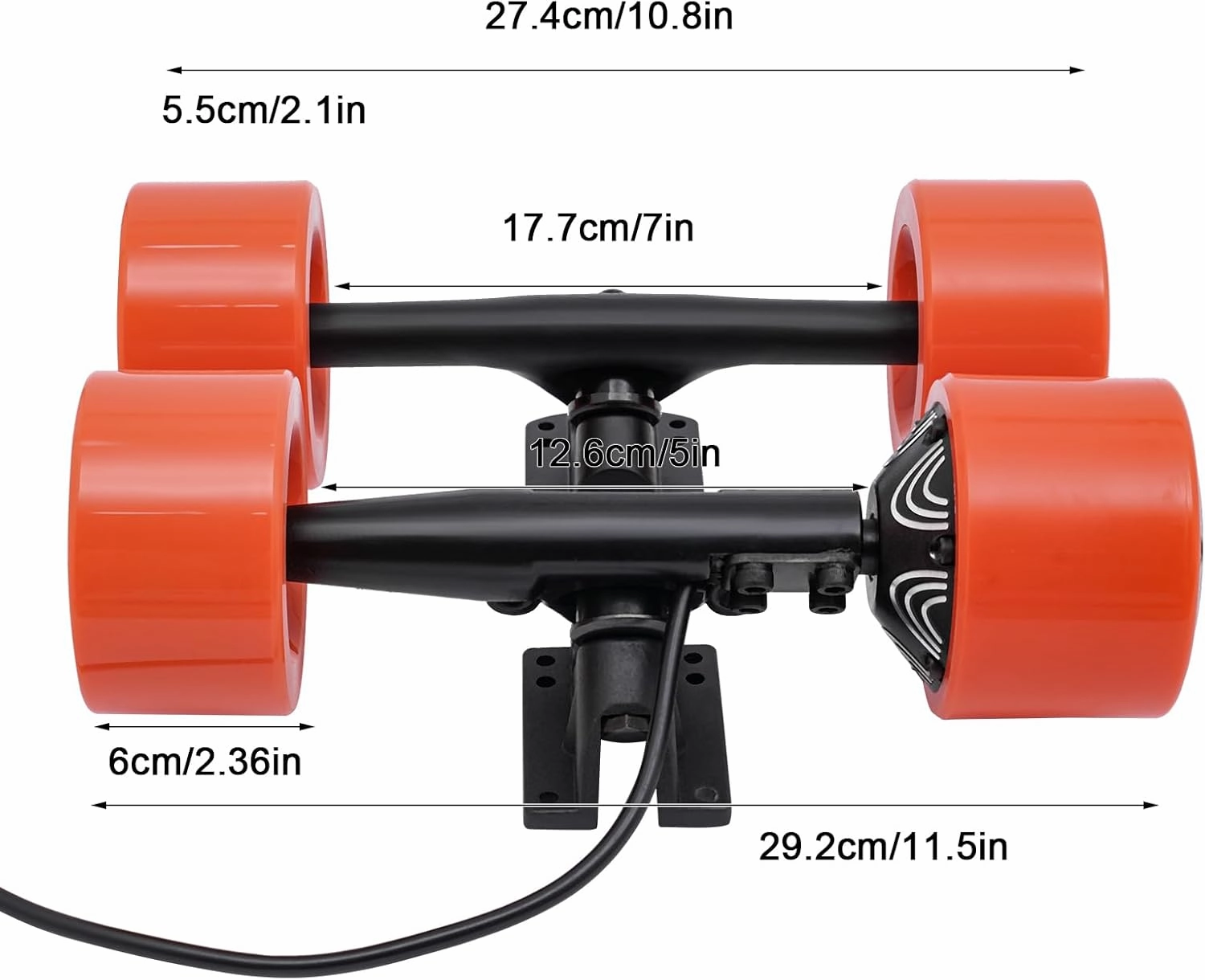

Front Wheel Width: 5.5m/2.17in
Front Wheel Linkage Length: 17.78cm/7in
Overall Length of Front Wheel: 27.43cm/10.8inch
Rear Wheel Width: 6cm/2.36in
Rear Wheel Linkage Length: 12.7cm/5inch
Rear Wheel Overall Length: 29.21cm/11.5inch
Wheel Diameter: 9cm/3.54inch
Package Size: 32.5×12.5×10.5cm/12.8×4.92×4.13inch
✪Package Included
2×Drive Scooter Hub Motors
